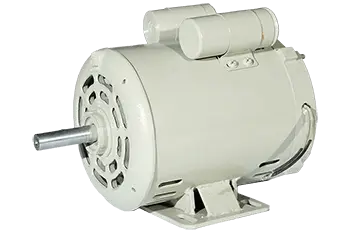

Single Phase Motors Manufacturer

Design and performance as per IS:996
Totally enclosed fan cooled type
180-240 volts 50HZ power supply
Class F insulation
IP44/IP55 Protection
Vacuum Impregnated, stators with an additional moisture proof coating
Pressure Die Cast Aluminium Rotors
Dynamically balanced for vibration-free operation
Double side shield SKF ball bearings factory lubricated for long service
High quality centrifugal switches
Special film wound Aluminium can capacitors
Very high starting torque (minimum 200%)

SPECIFICATIONS

Head Range : Up to 276 metres
Discharge Range : Up to 1540 LPM
Power Ratings : 2.2 to 18.5 kW (3 to 25 HP)
Voltage Range : 160 to 240 volts (single phase)
200 to 440 volts (three phase)
Insulation : B class
Type of Cooling : Water-filled
Protection : IP 68

MATERIAL OF CONSTRUCTION

Impeller : Stainless Steel / Noryl
Diffuser : Cast Iron / Noryl
Bowl/Stage casing : Cast Iron
Pump Shaft : Stainless Steel
Motor Housing : Stainless Steel
Motor Shaft : Stainless Steel
Finished Rotor : Copper
NRV : Cast Iron
Suction : Cast Iron
Pump /Motor Bushes : NBR / LTB
Thrust Bearing : Carbon + SS

Single Phase Motors Manufacturer | Wholesale Price | Coimbatore | Tamil Nadu

Single Phase Motors Manufacturer | Wholesale Price | Coimbatore | Tamil Nadu - Stark motors is the largest manufacturers of single phase motors with varoius ranges. We are located in Coimbatore, and we supply inside Tamil Nadu, Kerala, karnataka, punjab, haryana, uttar pradesh, Andhra pradesh, and Telangana.
